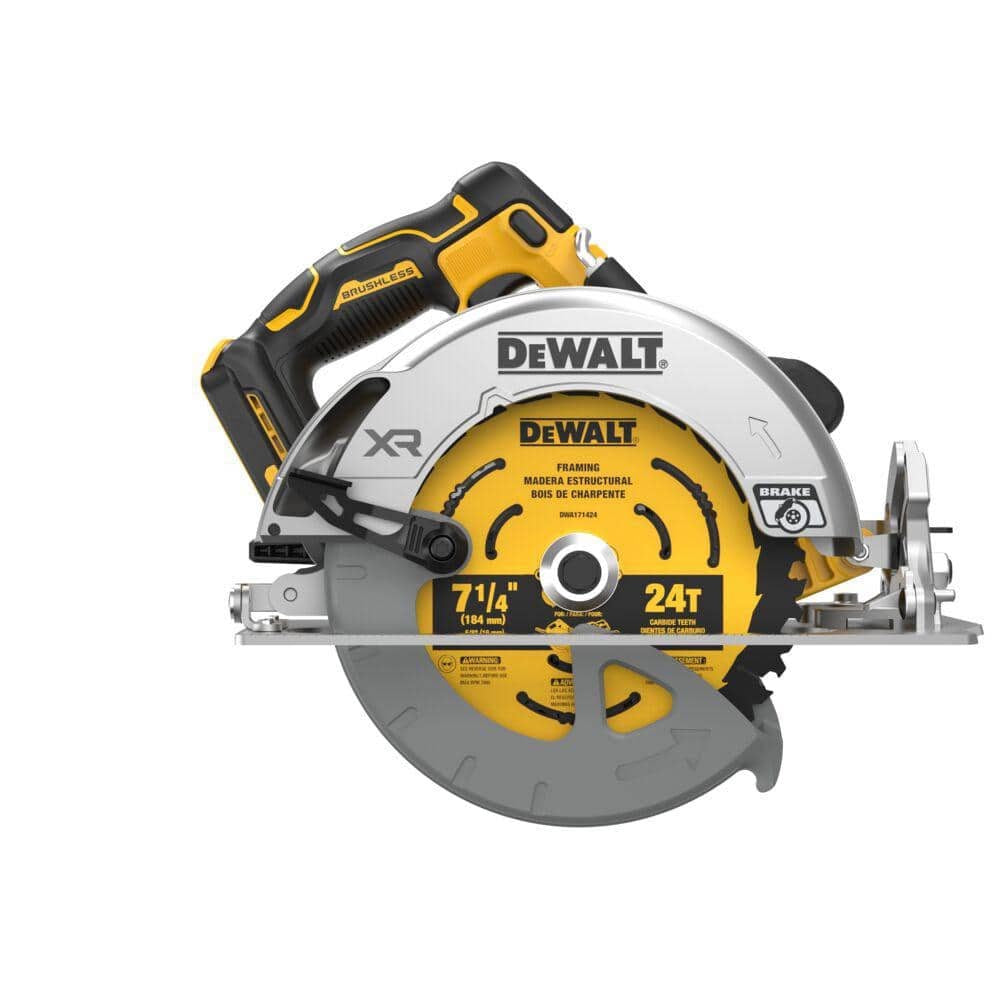

Dewalt 20v MAX 7-1/4in XR Circular Saw - DCS590B

DeWalt 20V MAX 7-1/4 in. XR Circular Saw - DCS590B

The DeWalt 20V MAX 7-1/4 in. XR Circular Saw is a high-performance cordless cutting tool designed for professionals and serious DIYers who need precision, power, and portability. Equipped with a brushless motor, this saw delivers fast cutting speeds and extended runtime, making it a reliable choice for framing, decking, and general construction tasks.

With a no-load speed of up to 5,500 RPM, it provides smooth, clean cuts through dimensional lumber, plywood, and other building materials. The deep cutting capacity allows for efficient crosscuts, rip cuts, and bevel cuts, making it a versatile addition to any toolbox. An integrated LED light, electric brake, and bevel adjustment up to 57 degrees ensure precision, safety, and flexibility on the job.

Key Features

• Powerful Brushless Motor: Delivers up to 1,700 maximum watts out (MWO) for high-performance cutting.
• High-Speed Cutting: Achieves a no-load speed of 5,500 RPM, allowing for fast, clean cuts.
• Extended Battery Life: Capable of making up to 368 cuts per charge when paired with an 8.0Ah battery.
• Deep Cutting Capacity: Cuts 2-9/16 inches deep at 90° and 2 inches at 45°, accommodating a variety of materials.
• Adjustable Bevel Angles: Offers a 0-57° bevel range with preset stops at 22.5° and 45°, allowing for precise angled cuts.
• Electric Brake: Stops the blade quickly when the trigger is released, improving safety and control.
• Integrated LED Light: Enhances visibility for accurate cutting in low-light conditions.
• Rafter Hook: Provides on-site storage for convenience and accessibility.
• Dust Management: Compatible with DeWalt's AirLock system or standard 35mm dust extractors for better dust control.
• Tool Connect™ Chip Ready: Compatible with DeWalt's Tool Connect™ tracking system (chip sold separately) for better inventory management.

Specifications

• Voltage: 20V MAX
• Blade Diameter: 7-1/4 inches
• No-Load Speed: 5,500 RPM
• Maximum Watts Out (MWO): 1,700
• Depth of Cut at 90°: 2-9/16 inches
• Depth of Cut at 45°: 2 inches
• Bevel Capacity: 0° to 57° with stops at 22.5° and 45°
• Arbor Size: 5/8 inch
• Tool Weight: 8.2 lbs (tool only)
• Dimensions: 15.3 inches (length) x 9.6 inches (height)
• LED Light: Yes
• Electric Brake: Yes
• Rafter Hook: Yes
• Dust Port: Yes

Applications

• Framing and Carpentry: Cuts through dimensional lumber, plywood, and OSB for efficient framing and general carpentry work.
• Roofing: Handles roof sheathing and shingle trimming with ease.
• Deck Building: Provides precise cuts for decking boards, joists, and railings.
• General Construction: Reliable for job site cutting needs, including trim work, flooring, and remodeling projects.
• Home Renovation: Ideal for DIYers tackling interior and exterior home improvement tasks.

Summary

The DeWalt 20V MAX 7-1/4 in. XR Circular Saw is a powerful and versatile cutting tool designed to deliver precision, speed, and efficiency on the job site. With its high-performance brushless motor, extended battery life, and deep cutting capacity, this saw is built to handle demanding applications with ease and accuracy. Whether you’re working on framing, roofing, or finishing projects, this cordless circular saw offers the freedom and power needed to get the job done right.
